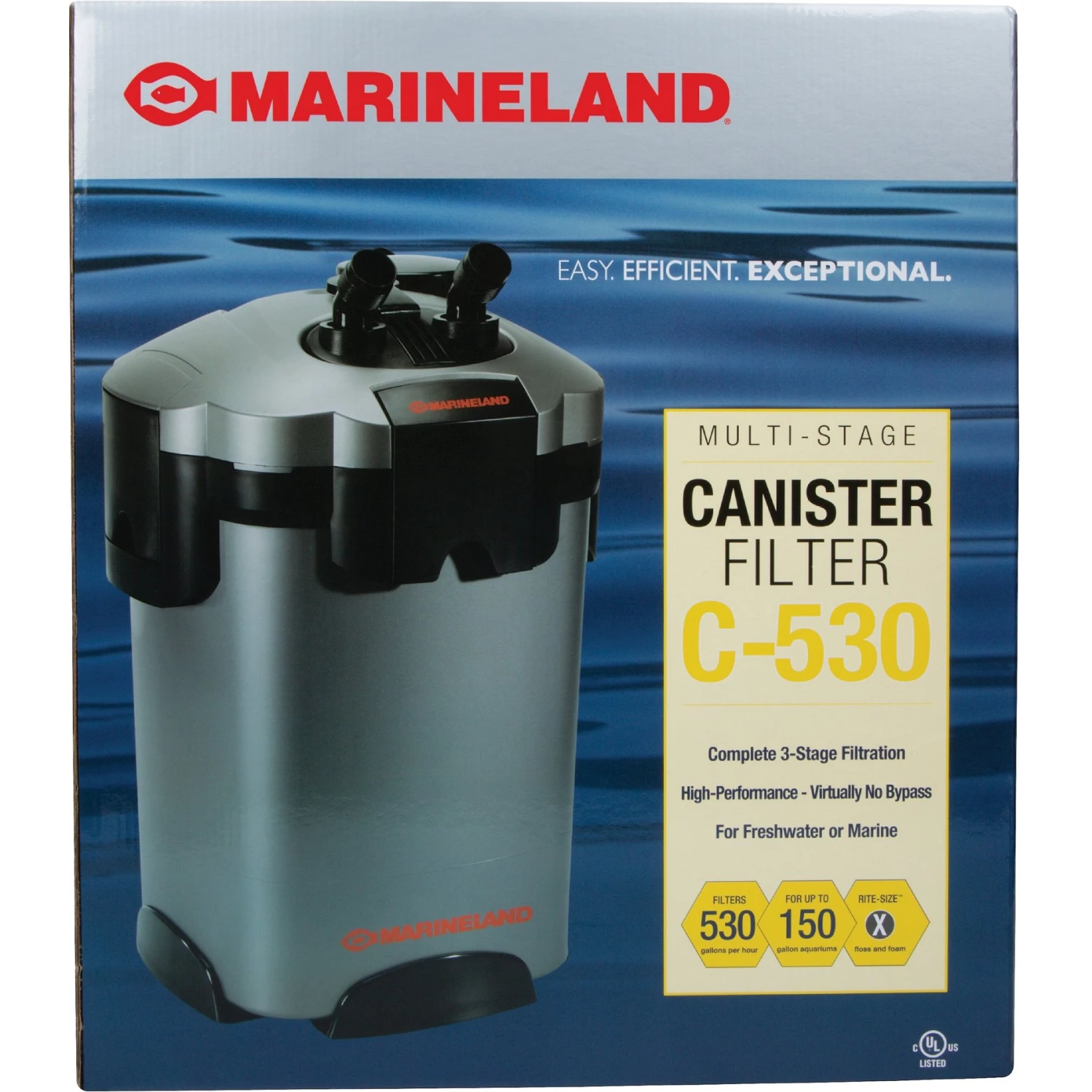

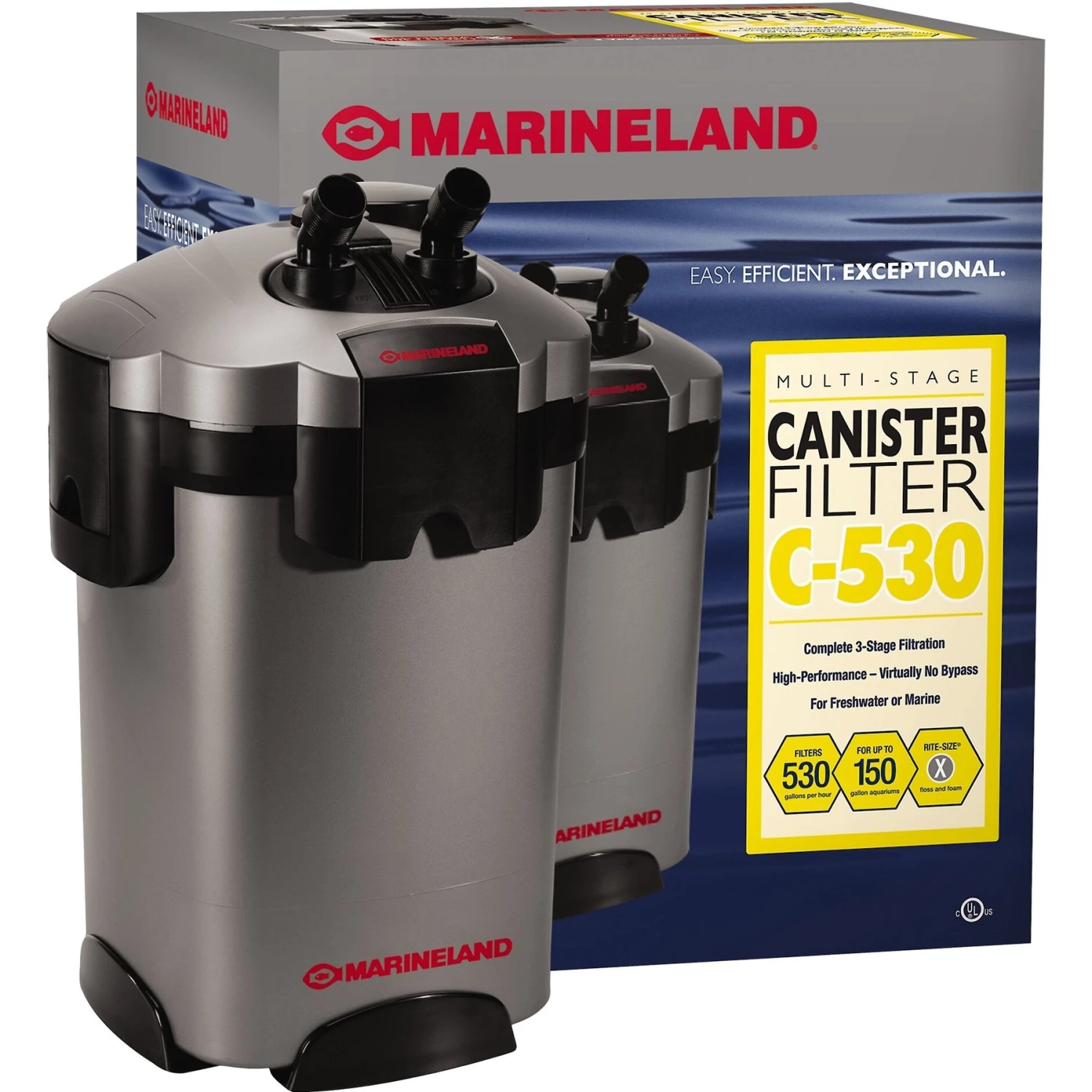

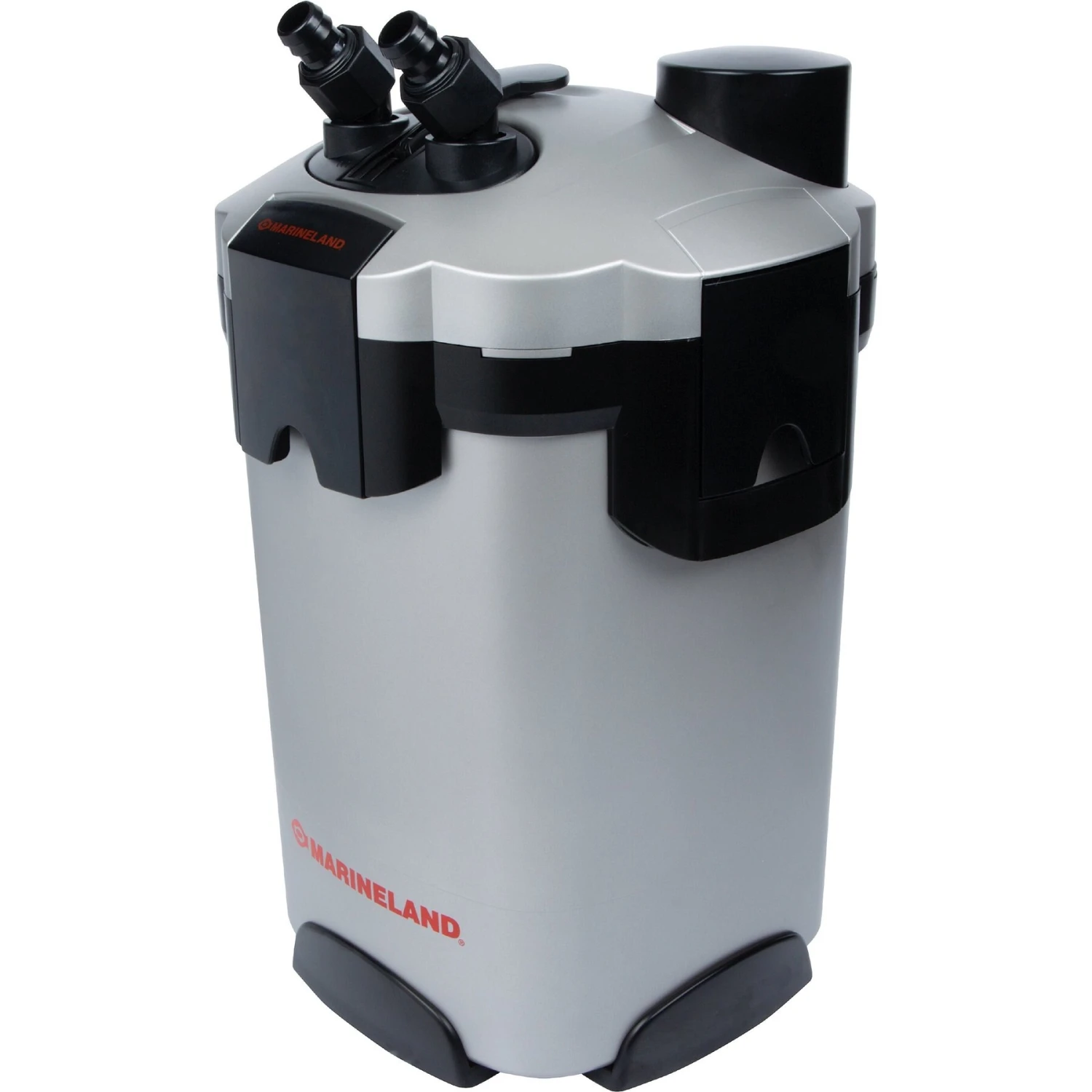

Marineland Multi-Stage C-530 Aquarium Canister Filter

Original price was: $204.98.Current price is: $95.99.

Secure Shopping Starts with Safe Payments

7 days return and exchange

Shop with confidence, we guarantee quality.

Worry-Free Shopping with Safe Payments

Allows the water to receive full-contact filtration with virtually no bypass so it can return to your aquarium as good as new.
Excellent three-stage filtration process maintains a crystal clear and healthy environment for fish to thrive in.
Durable, effective and long-lasting filter makes keeping an aquarium easier.
Provides fish, plants and coral with the clear, clean and safe water they need.
Effectively filters particulate and debris.

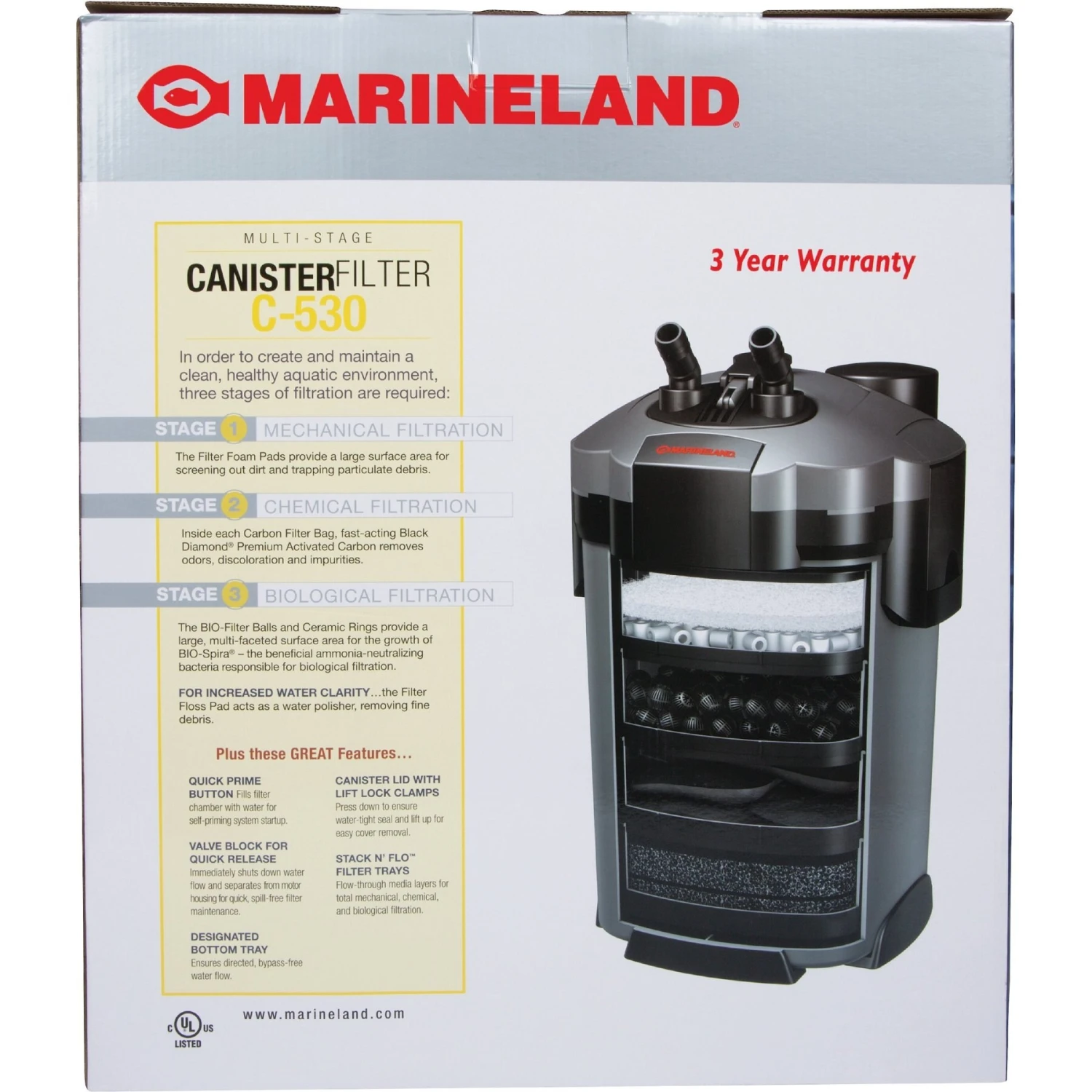

Marineland Multi-Stage Canister Filter is designed with an effective 3-stage filtration system consisting of biological, chemical and mechanical filtration. The bio-filter balls are designed to grow the beneficial bacteria that are needed for biological filtration, and excel at removing toxic ammonia and nitrites. Unlike other canister filters, Marineland Multi-Stage Canister Filter has no bypass option, meaning that it only has the ability to produce clean water. The replaceable media slots provide the mechanical and chemical filtration, screening out dirt and debris while removing odors, discoloration and impurities. The 100% water-to-media contact ensures a crystal clear, healthy environment for your plants and marine life. This 3-stage, clean water-producing system will guarantee that your aquatic environment thrives to its highest ability.

Specifications

Item Number	104925
Weight	31 pounds
Dimensions	18.25 x 13.5 x 21.5 inches
Aquarium Type	Freshwater, Saltwater
Tank Size	Over 75 Gallons
Season	N/A
Made In	China
Sourced From	N/A
Fish Type	Tropical Freshwater, Marine Fish
Material	Plastic
Reptile Type	Painted Turtle, Aquatic Turtle, Map Turtle, Red-Eared Slider Turtle, African Dwarf Frog, Frog, Newt, Salamander, Axolotl

Clean Filter Media regularly. Rinse with water from aquarium, NOT tap water.

Replace Filter Foam every 9 months.

Clean Impeller Assembly Cover and Impeller monthly. Rinse thoroughly under warm tap water.

Replace Filter Floss Pad and Carbon Filter Bags every month.

STEP 1
Parts Check: Check to see all parts are included.

STEP 2
Case Prep:

Unlock and remove Motor Head. Release Locking Buckles. Release Lift Buckles and pull up.
Unwrap all media and rinse thoroughly.

Place media in appropriate Filter Trays. Load Flow Dish, media-filled Filter Trays, and then the Securing Plate. IMPORTANT: Arrow on handle should align with arrow on filter case.
Replace Motor Head. Close Locking Buckles. Secure Lift Buckles. NOTE: Align Intake Nozzle and Connector Pipe.

Attach Valve Block to Motor Head. Turn Motor Head Key clockwise. Press Motor Head Key down and Close Key Cover.

STEP 3
Placement:

Place canister filter under aquarium, in an accessible location. Top of canister filter must be below aquarium water level.

Make sure the distance from bottom of filter and top of aquarium fall within the following ranges:
C-160: 20-60 inches
C-220: 24-60 inches
C-360: 32-60 inches
C-530: 32-80 inches
NOTE: Do not plug in yet.

STEP 4
Intake/Outlet Assembly:

Attach Strainer and Suction Cups to Intake Tube. Moisten Suction Cups and press Intake Tube in to position on inside wall of aquarium.

Attach Elbow, Diffuser, and Suction Cup to Outlet Tube. Moisten Suction Cup and press Outlet Tube into position on outside wall of aquarium.

STEP 5
Connection:

Attach Vinyl Tubing ends to Valve Hose Barbs. Tighten Hose Nuts.
Extend hoses to highest barbs on Intake and Outlet Tubes. Allow for 2 inches of slack. Cut Hoses to fit. Attach Hoses to Intake and Outlet Tubes. Models C-160, C-220 &C-360 only: Place Snapper Clamps around hose and tubes at fittings. Tighten Snapper Clamps. Models C-530: Tighten Locking Screws on Intake and Outlet Tubes.

STEP 6
Start Up

Plug in Filter.

Press Quick Prime Button two times to start the flow of water to the aquarium.

Note: If water flow through Diffuser is not satisfactory, unplug Filter and check hose connection for obstructions or kinking.

Note: A slight rattling noise is normal ONLY during startup. If noise persists, shut off filter and check for dirt or debris that may be at the bottom of canister.
